SKU Means:
Face Record/Face Detection/Face Playback
Record every face that appears on the lens, without missing any details.
You need use the Face Detction Function IP Camera
Advanced H.265++ Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265++ video saves around 70% of the bit rate at the same quality of coding.
Motion Detection & Email Alert/Record
when motion is detected, the NVR can send email or start record to the hard disk without missing any important events.
4K Super HD Resulution
4K NVR provies crystal-clear images and videos with 3840x2160P HD resolution.
You will see all details that happens at your surroundings.
Product Material, Size
Plastic Case, built-in main Board
20x20x4CM
Package Information

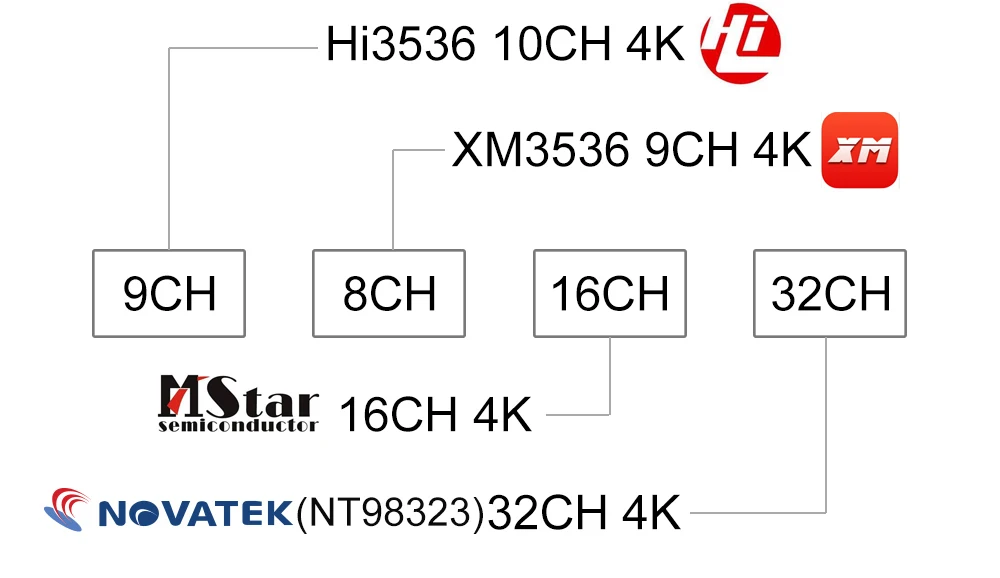

Description of applicable cameras
8CH XM Chip Support Max IP 4K/8MP
9CH Hisilicon Chip Support Max IP 4K/8MP
16CH Mstar Chip Support Max IP 4K/8MP
32CH Nova Chip Support Max IP 4K/8MP
One PCS HDD Support
Support 3.5CH HDD
Orgional Newest HDD Recommend
TOSHIBA, Seagate, Western Digital HDD
Others brands HDD will not work.
Recommend use the Security HDD, not PC HDD
Suitable for multiple environments
Easy remote access Anytime anywhere
P2P technology supports remote access on the mobile device,Just intall the APP on your phone by scanning the QR cade or storing from the APP View the camera remotely anytime, any where. PC use the www.xmeye.net to visit the camera.
|
1: We are the OEM factory, Label will not same all the time 2: 8CH SKU is the XM3536 chip,This new chip Operating temperature will be higher than Hi3536 chip,if you care about the temperature, please do not buy it 3: If item work well, not recommend update. 4: This one 8CH will be Metal Base for help Heat dissipation |
Features :
-
With H.265 High efficiency Video Compression
-
With unique time screen in front of the panel, and displays recorder.
-
Support Symbian S60V3/V5, Windows Mobile, Iphone, Android,, Blackberry and so on.
-
Support 1*HDD( 8TB), with 2*USB2.0 for backup, burning, upgrading operation
-
Stronger network service. support IE browse and CMS software
-
Build-in org,dyndns.net,oray.net and myq-see.com free DDNS dynamic domain name
-
Built-in own free DDNS Domain Name Server:
-
With HDMI-Compatible, Support 4K Output, 8CH is 1080P Output
-
Support P2P cloud functions
|
System |
Model
|
32CH
|
16CH |
10CH |
9CH |
|
Chip |
NOVA |
Mstar |
Hisilicon |
XM |
|
|
Operating System
|
Embedded Linux
|
||||
|
System resources
|
Simultaneous multi-channel real-time recording, playback, network operation, USB backup
|
||||
|
Material |
Case |
Plastic |
Plastic |
Plastic |
Metal+Plastic |
|
Interface
|
Operator interface
|
16-bit true color graphic menu operation interface, support mouse operation
|
|||
|
Preview
|
1/4/8/9/16/25/32
|
1/4/8/9/16 |
1/4/8/9/10 |
1/4/8/9/10 |
|
|
Video
|
Video input
(IP)
|
32CH*4K
|
16*4K |
10*4K |
9*4K |
|
Video
compression
|
H.265/H.264
|
||||
|
H.265 Require |
H.265 Must be the same program Item, or not work. |
||||
|
Display
quality
|
Max 4K
|
Max 4K |
Max 4K |
Max 4K |
|
|
Playback
quality
|
Max 4K
|
Max 4K |
Max 4K |
Max 4K |
|
|
Motion Detection |
Support |
Support |
Support |
Support |
|
|
Face Detection |
Support |
Support |
Support |
Support |
|
|
Face Detection/Human Detection/Motion Detection All should be the same program,or not work! |
|||||
|
Human Detection |
Support |
Support |
Support |
Support |
|
|
Decode
|
4K 8MP/5MP/1080P
|
||||
|
VR
|
Unsupport
|
||||
|
Motion
detection
|
Support(depend on camera)
|
||||
|
Recording mode
|
Manual>Alarm>Dynamic Detection>Timing
|
||||
|
Local payback
|
Max 4K
|
Max 4K |
Max 4K |
Max 4K |
|
|
Record & playback
|
Search mode
|
Search by Time/Calendar/Event/Channel
|
|||
|
Record storage,usafeqlo
|
HDD,Network
|
||||
|
Backup mode
|
Network backup, USB hard disk, USB burner, SATA burner
|
||||
|
Video output
|
1ch VGA,1ch HDMI-Compatible HD output
|
||||
|
Audio I/O
|
0/0
|
||||
|
External interface
|
3G/Wifi
|
32CH Support
|
16CH Support |
10CH Support |
9CH Not Support |
|
10CH 16CH Please ask seller send firmware Wifi function |
|||||
|
Network
interface
|
1*RJ45 10M/100M Adaptive Ethernet port
|
||||
|
USB interface
|
2*USB2.0 ports (Not support the keyboard)
|
||||
|
HDD
|
1* SATA(Up to 14TB for each disk)
|
||||
|
ESATA
|
Not Support
|
||||
|
Audio Out
|
1 Channel |
||||
|
Third Protocol
|
Support Some
(Support Most of Camera, but if you use Reolink,HIK,Dahua cameras, please ask your camera seller weather can support Xmeye nvr
.) |
||||
|
Power supply
|
12V/2A
|
||||
|
Other
|
Power Consumption
|
<10W(Without HDD)
|
|||
|
Work environment
|
Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp
|
||||
|
Dimension
|
L255*W245*H42mm
|
||||
|
Weight
|
A total of about 920g
|
||||
|
Model |
1032/16/10/09R-KL |
||||
Wifi Adapter is not include, if you need, you can Press the photo as below to buy:
(8CH not support Wifi, Only 9CH 16CH 32CH board support wifi adapter)
New Style Menu
| Brand Name | USAFEQLO |
|---|---|
| Origin | CN(Origin) |
| Smart home platform | Other |
| Certification | NONE |
| Technology | Network |
| Supported Operating Systems | Mac OS |
| e-Cloud(P2P) | Yes |
| Video Output | 1VGA + 1HDMI-compatible |
| IP Mode | Static IP address |
| Video Standard | PAL |
| Hard Drive Size | 3.5'' |
| Network Protocol | DNS |
| Network Interface | RJ45 10/100M |
| Backup Type | Hard Drive |
| Audio Output | None |
| Video Input Interface | RJ45 |
| Supported Mobile Systems | Windows Mobile |
| Two-way Audio | No |
| Compression Format | H.264 |
| Wireless Security | WEP |
| Audio Compression Format | G711A |
| Hard drive Interface Type | SATA |
| Communication Interface | RS232 |
| Model Number | 1009/16/32R-KL/GL/OEM |
| Alarm Action | Local Alarm |
| POE | None |
| Audio Input | 1 Channel |
| Video Input | 9/10/16/32 CHANNEL IP |
| Main Processor | NOVA/ HISILICON 3536/XM3536 |
| HDD | up to 8TB(3.5ch HDD) |
| Phone | Mobile phone, I-Pad, I-Phone, etc |
| USB | 2* USB 2.0(Not support Keyboard) |
| Power supply | 12V2A |
| CMS | Support |
| 3G Wifi | 9CH/16CH/32CH Support 7601 Wifi adapter |
| Audio Out | 1CH |
